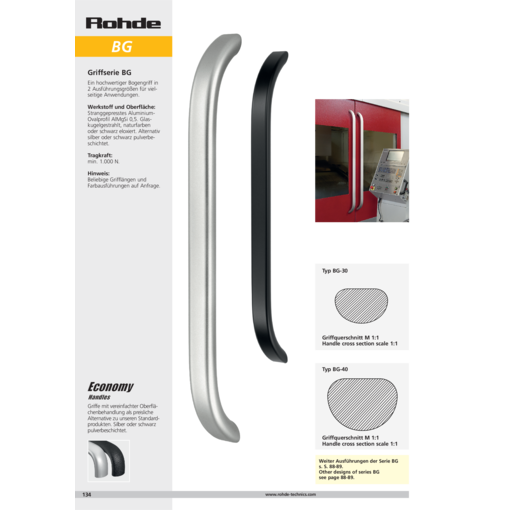

Aluminium Bogengriff BG-30 BG-40
A high-quality bow type handle in two different sizes for a variety of applications.
Material and surface:
Extruded, oval-profiled aluminium AlMgSi 0.5. Glass ball blasted and anodized in natural colour or black. Alternatively silver or black powder coated.
Due to design constraints, dimension L may vary.
Note:
Any desired handle lengths and colour combinations on request.
Economy Handles
Handles with simplified surface treatment as a cost-effective alternative to our standard products.
Stress resistance:
min. 1000 N.
show more show lessVersion BG-30
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| A | L |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
| A | L |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
|---|---|---|---|---|---|
| A 350 | L ca.377 |
Anodizing version natural-colored with satin finish
Order-No. BG-30.377.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. BG-30.377.14 3D+CAD |
powder coated black
Order-No. — |
Aluminum powder coated silver
Order-No. — |
| A 400 | L ca.427 |
Anodizing version natural-colored with satin finish
Order-No. BG-30.427.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. BG-30.427.14 3D+CAD |
powder coated black
Order-No. BG-30.427.54 3D+CAD |
Aluminum powder coated silver
Order-No. BG-30.427.9006 3D+CAD |
| A 450 | L ca.477 |
Anodizing version natural-colored with satin finish
Order-No. BG-30.477.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. BG-30.477.14 3D+CAD |
powder coated black
Order-No. — |
Aluminum powder coated silver
Order-No. — |
| A 500 | L ca.527 |
Anodizing version natural-colored with satin finish
Order-No. BG-30.527.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. BG-30.527.14 3D+CAD |
powder coated black
Order-No. BG-30.527.54 3D+CAD |
Aluminum powder coated silver
Order-No. BG-30.527.9006 3D+CAD |
Version BG-40
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| A | L |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
| A | L |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
powder coated black
Order-No. |
Aluminum powder coated silver
Order-No. |
|---|---|---|---|---|---|
| A 500 | L ca.540 |
Anodizing version natural-colored with satin finish
Order-No. BG-40.540.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. BG-40.540.14 3D+CAD |
powder coated black
Order-No. — |
Aluminum powder coated silver
Order-No. — |
| A 600 | L ca.640 |
Anodizing version natural-colored with satin finish
Order-No. BG-40.640.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. BG-40.640.14 3D+CAD |
powder coated black
Order-No. BG-40.640.54 3D+CAD |
Aluminum powder coated silver
Order-No. BG-40.640.9006 3D+CAD |
| A 700 | L ca.740 |
Anodizing version natural-colored with satin finish
Order-No. BG-40.740.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. BG-40.740.14 3D+CAD |
powder coated black
Order-No. — |
Aluminum powder coated silver
Order-No. — |
| A 800 | L ca.840 |
Anodizing version natural-colored with satin finish
Order-No. BG-40.840.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. BG-40.840.14 3D+CAD |
powder coated black
Order-No. BG-40.840.54 3D+CAD |
Aluminum powder coated silver
Order-No. BG-40.840.9006 3D+CAD |
