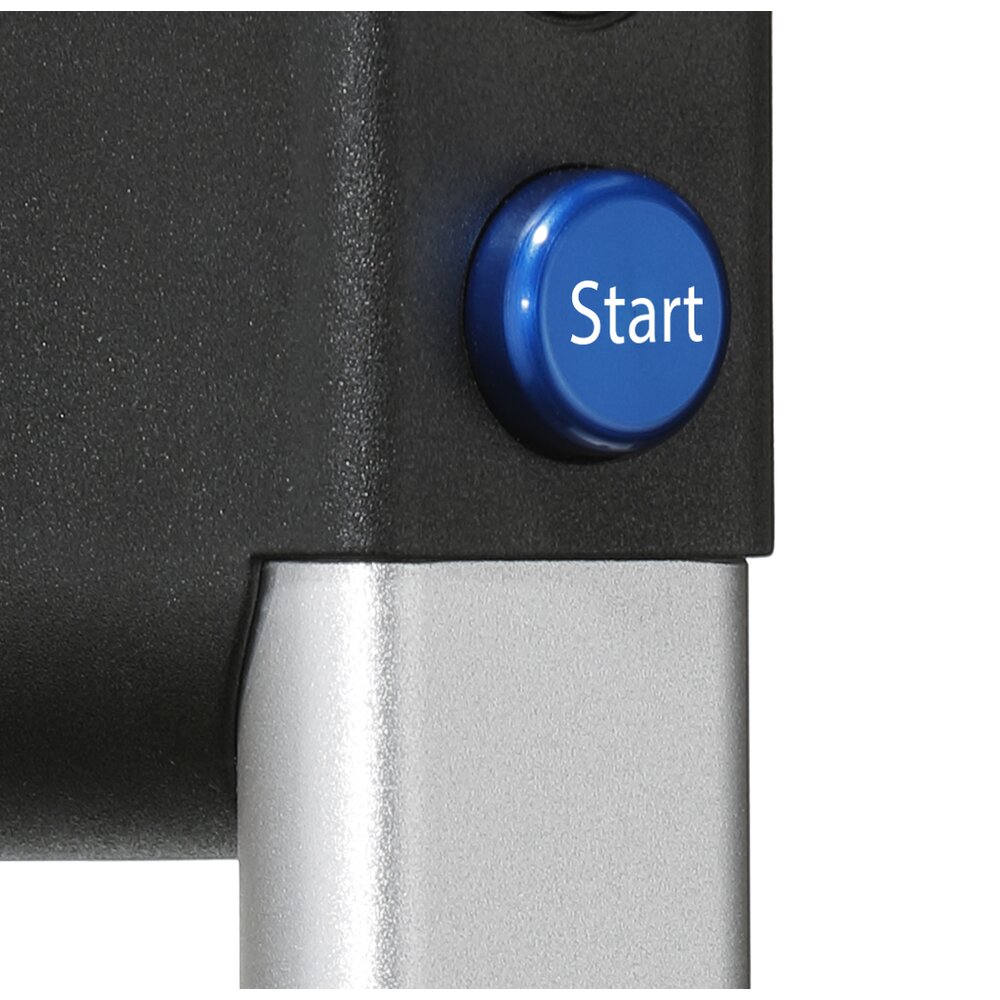

  • Close-up image of a black handle with a blue circular push button labeled Start, mounted on a metallic ledge.
Close-up image of a black handle with a blue circular push button labeled Start, mounted on a metallic ledge.

Handles FG18-P5

Material and surface:
Shanks made of polyamide PA6 black half-matt finish with fine structure. Ledge made of profiled aluminum AlMgSi 0.5 blasted and natural anodized.

Function elements:
One or two 5/2 solenoid valves with straight adaptor.

Connection:
Cylindrical straight fitting, Ø4 mm with O-ring.

Note:
Other handle lengths on request.

show more show less
  • handle lengths customized
  • button colors according to customer specifications
  • further color versions
show more show less
Unit of measure
Description
Connecting with 1 valve
Order-No. 		with 2 valves
Order-No.
Connecting with 1 valve
Order-No. 		with 2 valves
Order-No.
Connecting left with 1 valve
Order-No. FG18-P5.L140.11 3D+CAD 		with 2 valves
Order-No. FG18-P5.LL140.11 3D+CAD
Connecting right with 1 valve
Order-No. FG18-P5.R140.11 3D+CAD 		with 2 valves
Order-No. FG18-P5.RR140.11 3D+CAD
