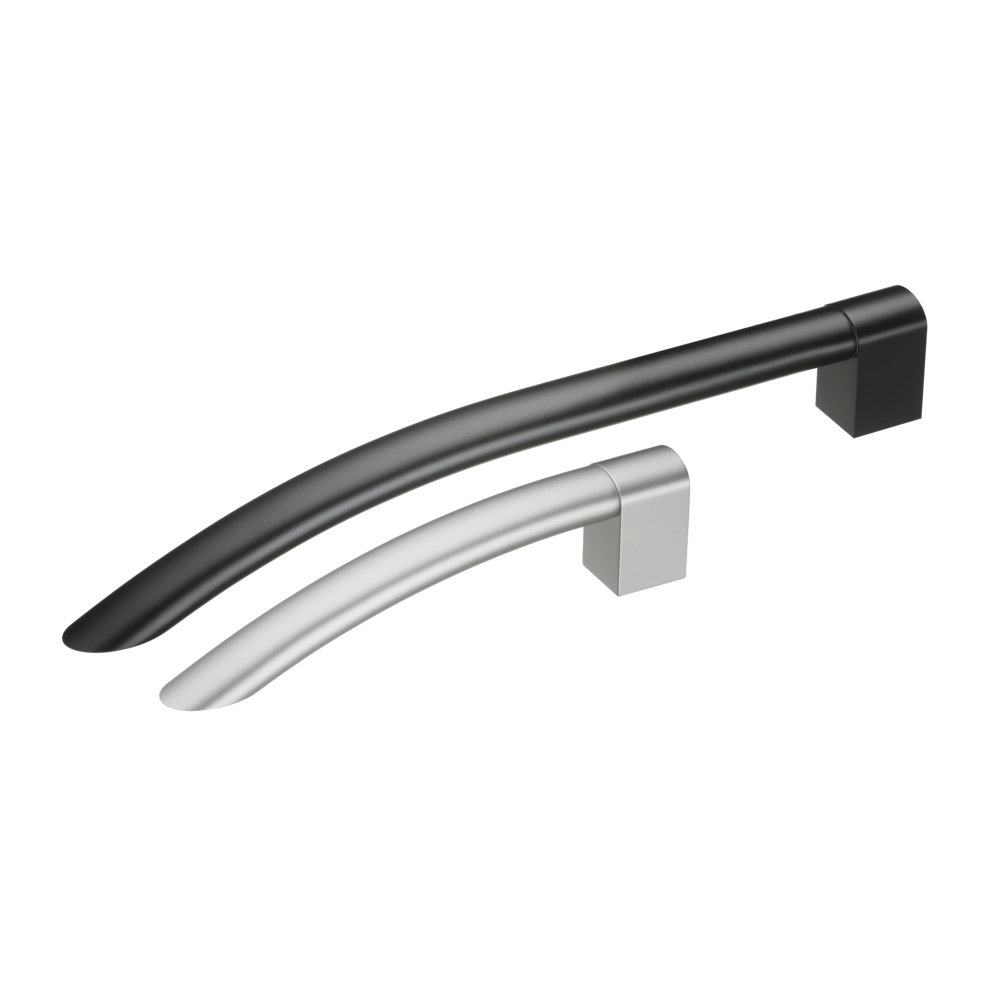

  • Two FG20 handles, one black and one silver, with curved design and mounting bases, arranged diagonally.
Two FG20 handles, one black and one silver, with curved design and mounting bases, arranged diagonally.

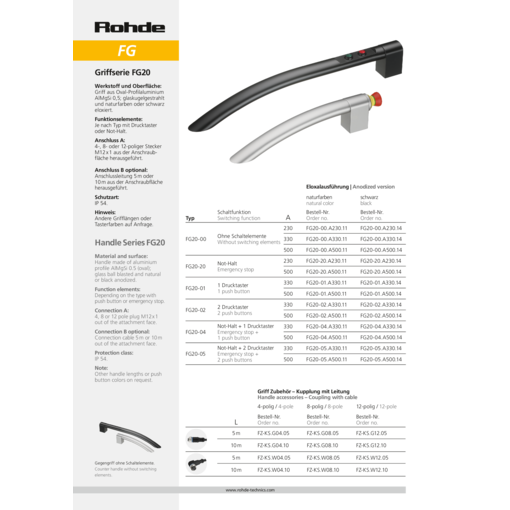

Functional handles FG20

Material and surface:
Handle made of aluminium profile AlMgSi 0.5; glass ball blasted and natural or black anodized.

Function elements:
Depending on the type with push button or emergency stop.

FG20-00: Without switching elements

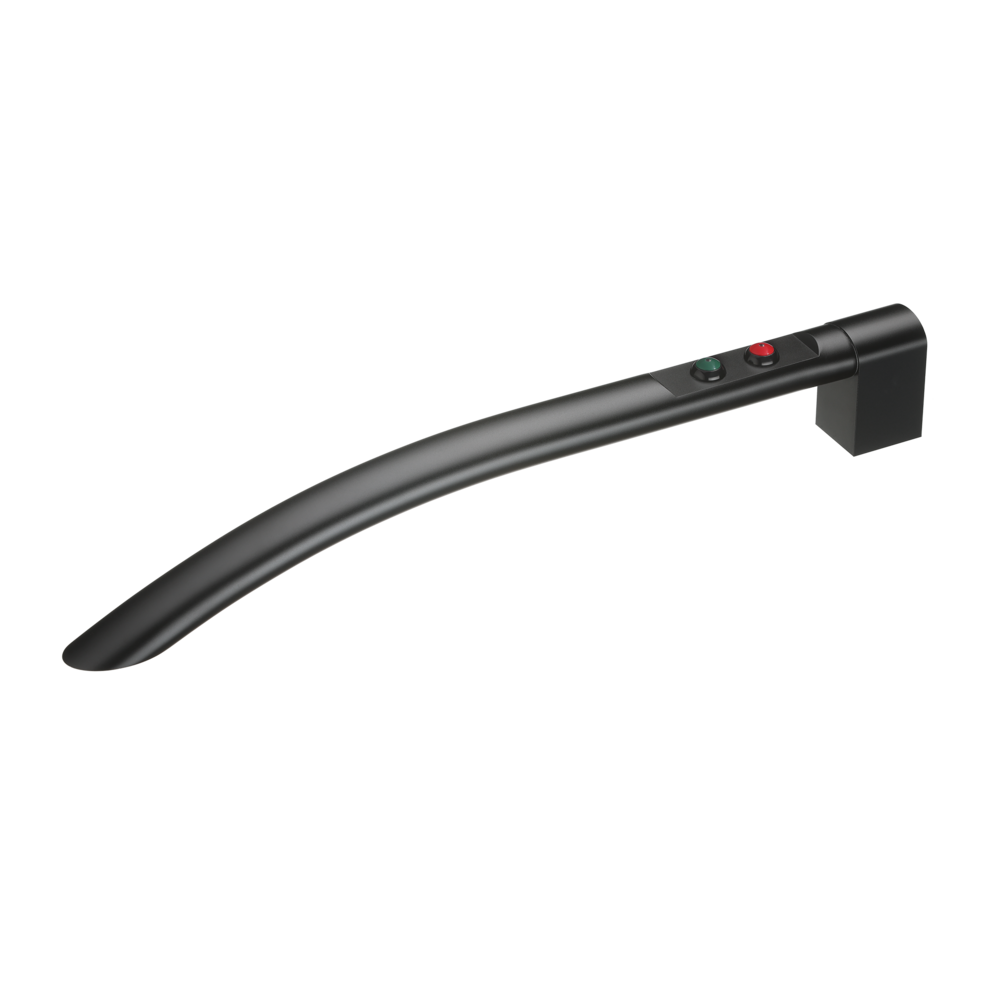

FG20-01: 1 push button
FG20-02: 2 push buttons
FG20-04: 1 push button and emergency stop
FG20-05: 2 push buttons and emergency stop

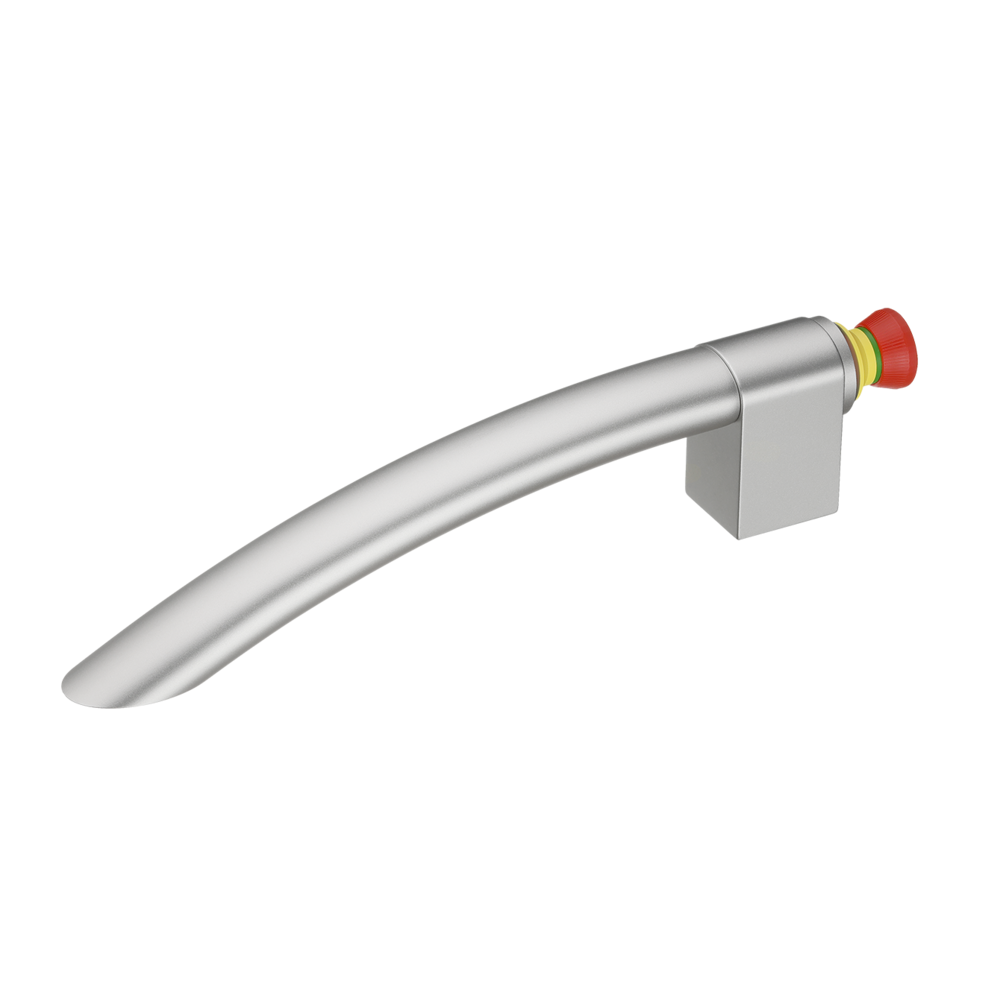

FG20-20: Emergency stop

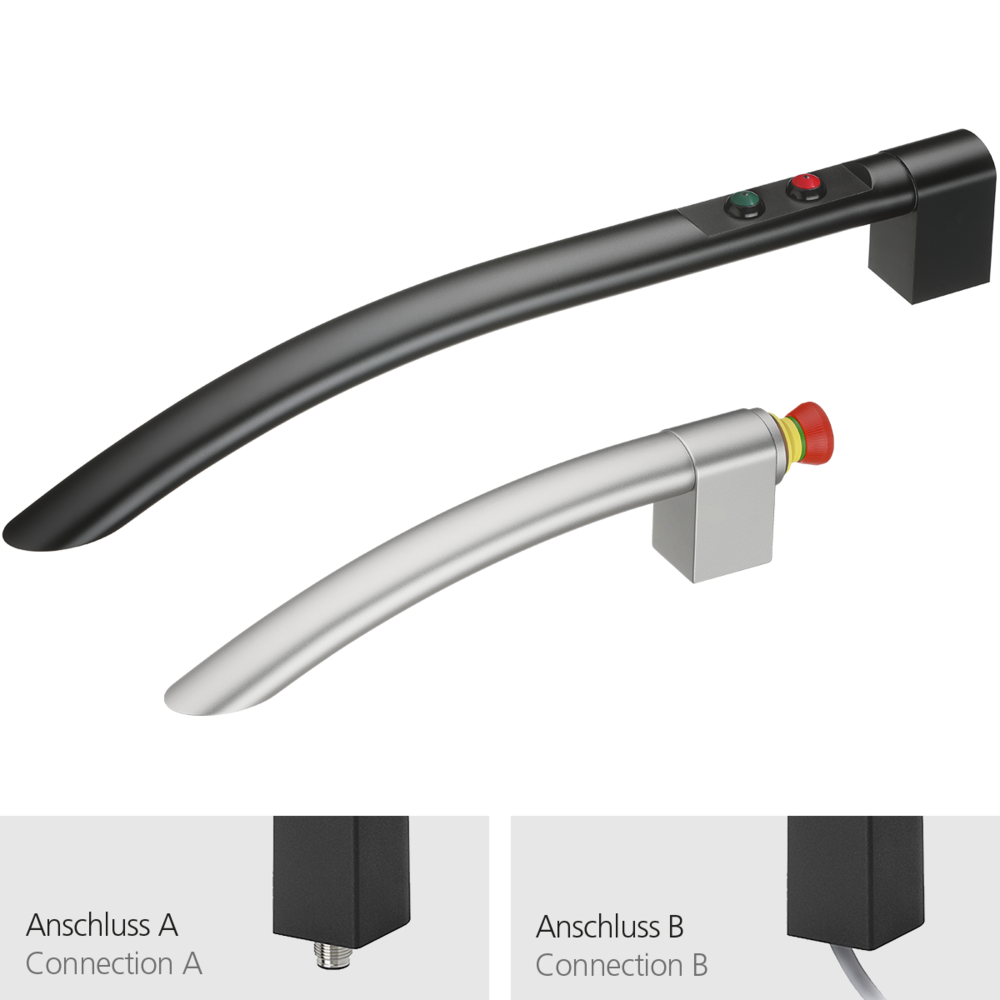

Connection A:
4, 8 or 12-pole Plug M12 x 1 out of the attachment face.

Connection B (optional):
Connection cable 5 m or 10 m out of the attachment face.

Protection class:
IP 54.

Note:
Other handle lengths or push button colors on request.

show more show less

Version A

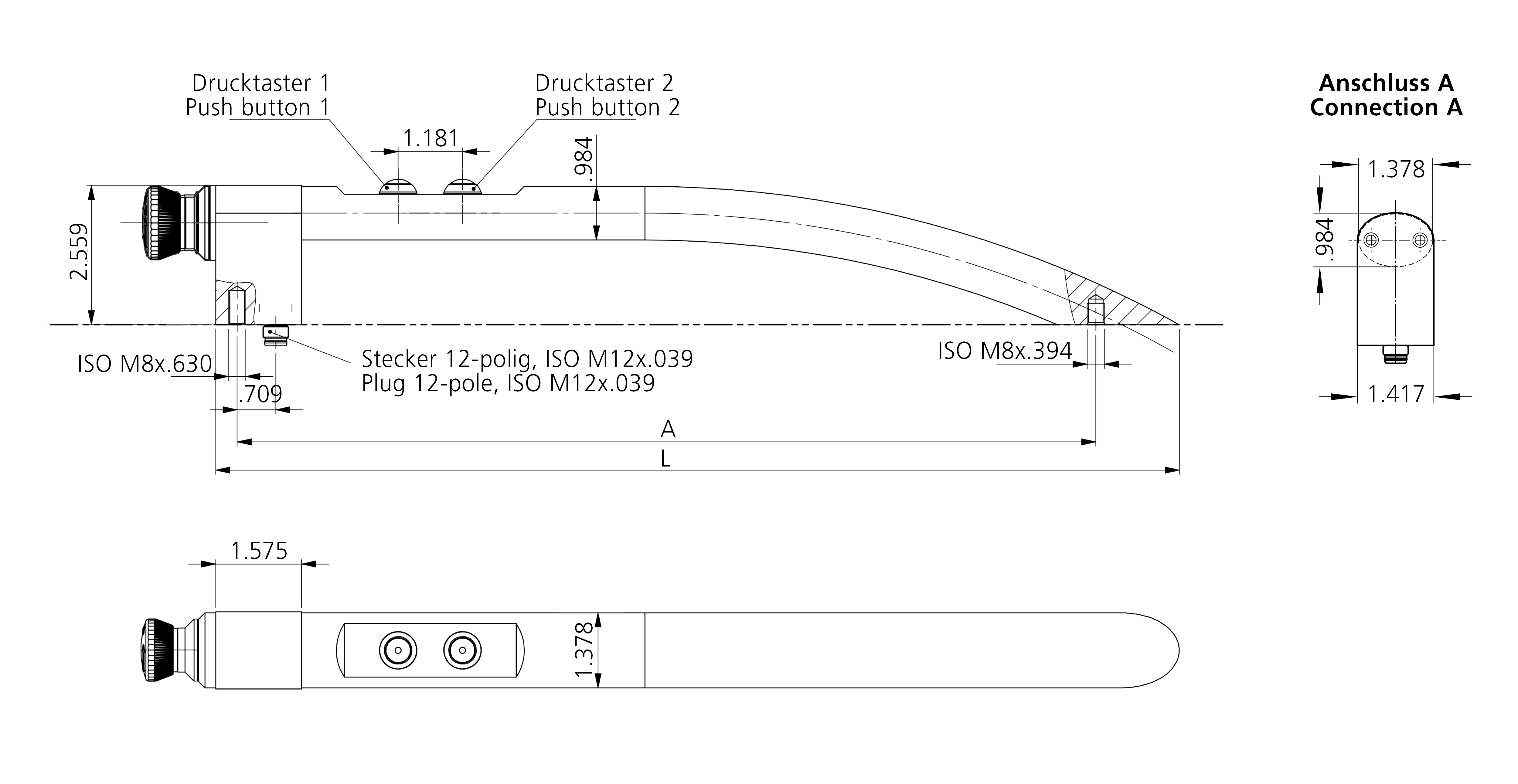

Technical drawing of an FG20 aluminum handle with two push buttons and a 12-pole ISO M12 connection plug, showing side and top views with detailed measurements in inches.
Unit of measure
Type
Product Type Description A Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Product Type Description A Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Product Type FG20-00 Description Counter handle without function A 230 Anodizing version natural-colored with satin finish
Order-No. FG20-00.A230.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-00.A230.14 3D+CAD
Product Type FG20-00 Description Counter handle without function A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-00.A330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-00.330.14 3D+CAD
Product Type FG20-00 Description Counter handle without function A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-00.A500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-00.A500.14 3D+CAD
Product Type FG20-01 Description 1 push button A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-01.A330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-01.A330.14 3D+CAD
Product Type FG20-01 Description 1 push button A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-01.A500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-01.A500.14 3D+CAD
Product Type FG20-02 Description 2 push buttons A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-02.A330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-02.A330.14 3D+CAD
Product Type FG20-02 Description 2 push buttons A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-02.A500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-02.A500.14 3D+CAD
Product Type FG20-04 Description 1 push button + emergency stop A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-04.A330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-04.A330.14 3D+CAD
Product Type FG20-04 Description 1 push button + emergency stop A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-04.A500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-04.A500.14 3D+CAD
Product Type FG20-05 Description 2 push buttons + emergency stop A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-05.A330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-05.A330.14 3D+CAD
Product Type FG20-05 Description 2 push buttons + emergency stop A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-05.A500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-05.A500.14 3D+CAD
Product Type FG20-20 Description Emergency stop A 230 Anodizing version natural-colored with satin finish
Order-No. FG20-20.A230.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-20.A230.14 3D+CAD
Product Type FG20-20 Description Emergency stop A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-20.A500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-20.A500.14 3D+CAD

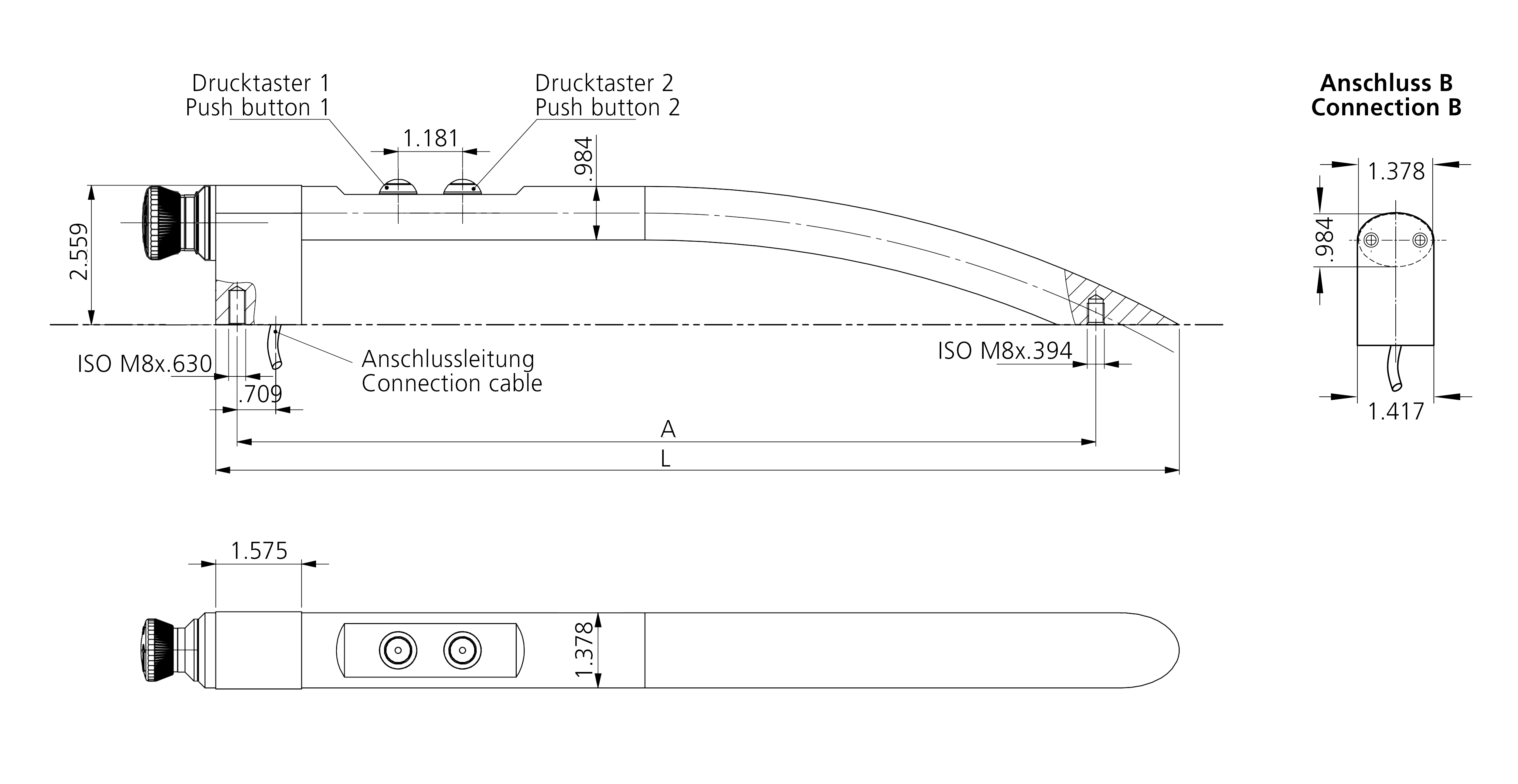

Version B

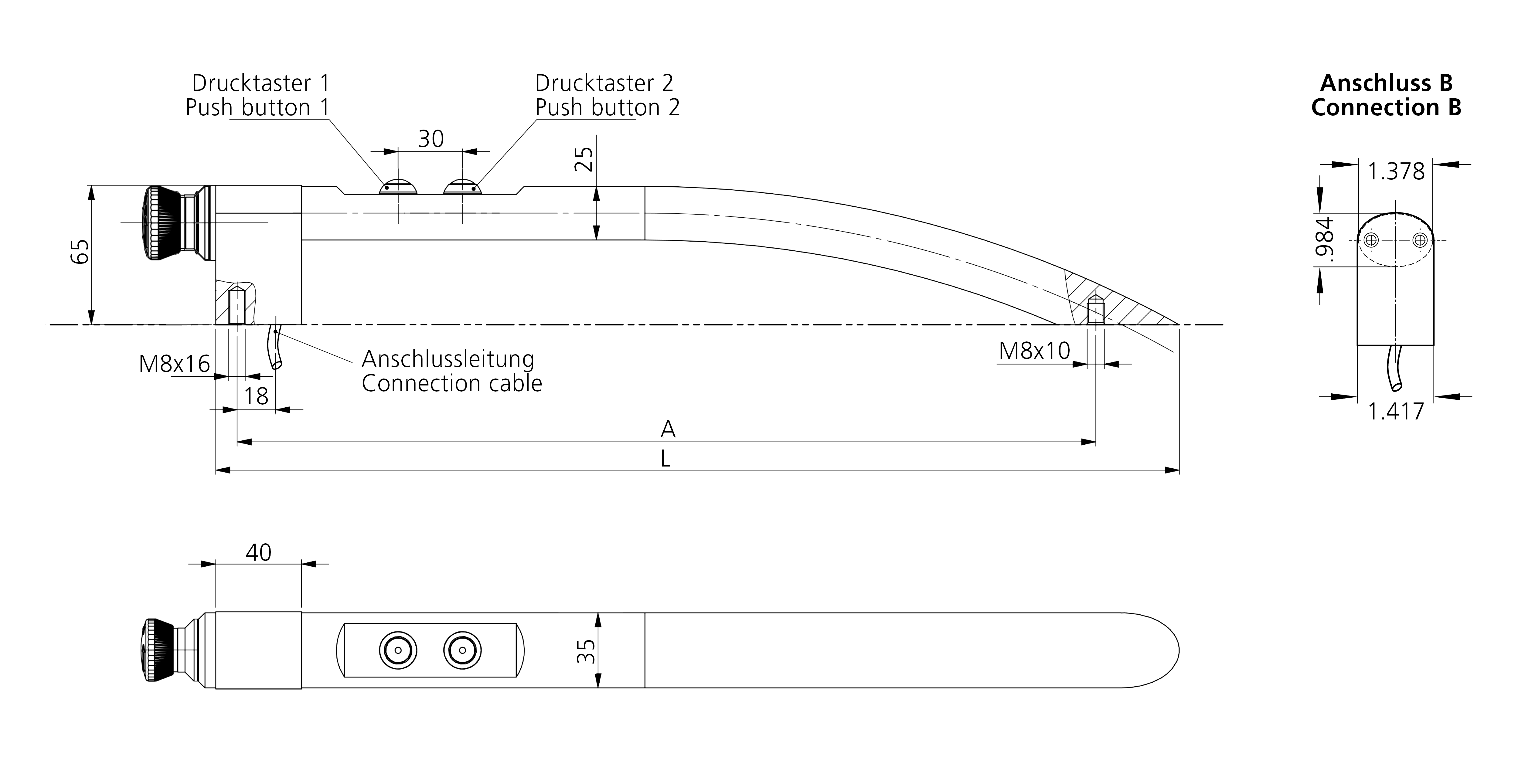

Technical drawing of FG20 handle with two push buttons, labeled dimensions, and connection points including M8 screws and connection cable location.
Unit of measure
Type
Product Type Description A Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Product Type Description A Anodizing version natural-colored with satin finish
Order-No. 		Anodized aluminum black with satin finish
Order-No.
Product Type FG20-00 Description Counter handle without function A 230 Anodizing version natural-colored with satin finish
Order-No. FG20-00.B230.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-00.B230.14 3D+CAD
Product Type FG20-00 Description Counter handle without function A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-00.B330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-00.B330.14 3D+CAD
Product Type FG20-00 Description Counter handle without function A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-00.B500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-00.B500.14 3D+CAD
Product Type FG20-01 Description 1 push button A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-01.B330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-01.B330.14 3D+CAD
Product Type FG20-01 Description 1 push button A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-01.B500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-01.B500.14 3D+CAD
Product Type FG20-02 Description 2 push buttons A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-02.B330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-02.B330.14 3D+CAD
Product Type FG20-02 Description 2 push buttons A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-02.B500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-02.B500.14 3D+CAD
Product Type FG20-04 Description 1 push button + emergency stop A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-04.B330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-04.B330.14 3D+CAD
Product Type FG20-04 Description 1 push button + emergency stop A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-04.B500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-04.B500.14 3D+CAD
Product Type FG20-05 Description 2 push buttons + emergency stop A 330 Anodizing version natural-colored with satin finish
Order-No. FG20-05.B330.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-05.B330.14 3D+CAD
Product Type FG20-05 Description 2 push buttons + emergency stop A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-05.B500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-05.B500.14 3D+CAD
Product Type FG20-20 Description Emergency stop A 230 Anodizing version natural-colored with satin finish
Order-No. FG20-20.B230.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-20.B230.14 3D+CAD
Product Type FG20-20 Description Emergency stop A 500 Anodizing version natural-colored with satin finish
Order-No. FG20-20.B500.11 3D+CAD 		Anodized aluminum black with satin finish
Order-No. FG20-20.B500.14 3D+CAD
Handle accessories – Coupling with cable
Coupling Length 4-polig / 4-pole
Order-No. 		8-polig / 8-pole
Order-No. 		12-polig / 12-pole
Order-No.
Coupling Length 4-polig / 4-pole
Order-No. 		8-polig / 8-pole
Order-No. 		12-polig / 12-pole
Order-No.
Close-up view of a circular industrial connector with multiple pins and attached black cable Coupling angled Length 5m 4-polig / 4-pole
Order-No. FZ-KS.W04.05 		8-polig / 8-pole
Order-No. Z-KS.W08.05 		12-polig / 12-pole
Order-No. FZ-KS.W12.05
Close-up view of a circular industrial connector with multiple pins and attached black cable Coupling angled Length 10m 4-polig / 4-pole
Order-No. FZ-KS.W04.10 		8-polig / 8-pole
Order-No. FZ-KS.W08.10 		12-polig / 12-pole
Order-No. FZ-KS.W12.10
Coupling straight / axial Length 5m 4-polig / 4-pole
Order-No. FZ-KS.G04.05 		8-polig / 8-pole
Order-No. Z-KS.G08.05 		12-polig / 12-pole
Order-No. FZ-KS.G12.05
Coupling straight / axial Length 10m 4-polig / 4-pole
Order-No. FZ-KS.G04.10 		8-polig / 8-pole
Order-No. FZ-KS.G08.10 		12-polig / 12-pole
Order-No. FZ-KS.G12.10

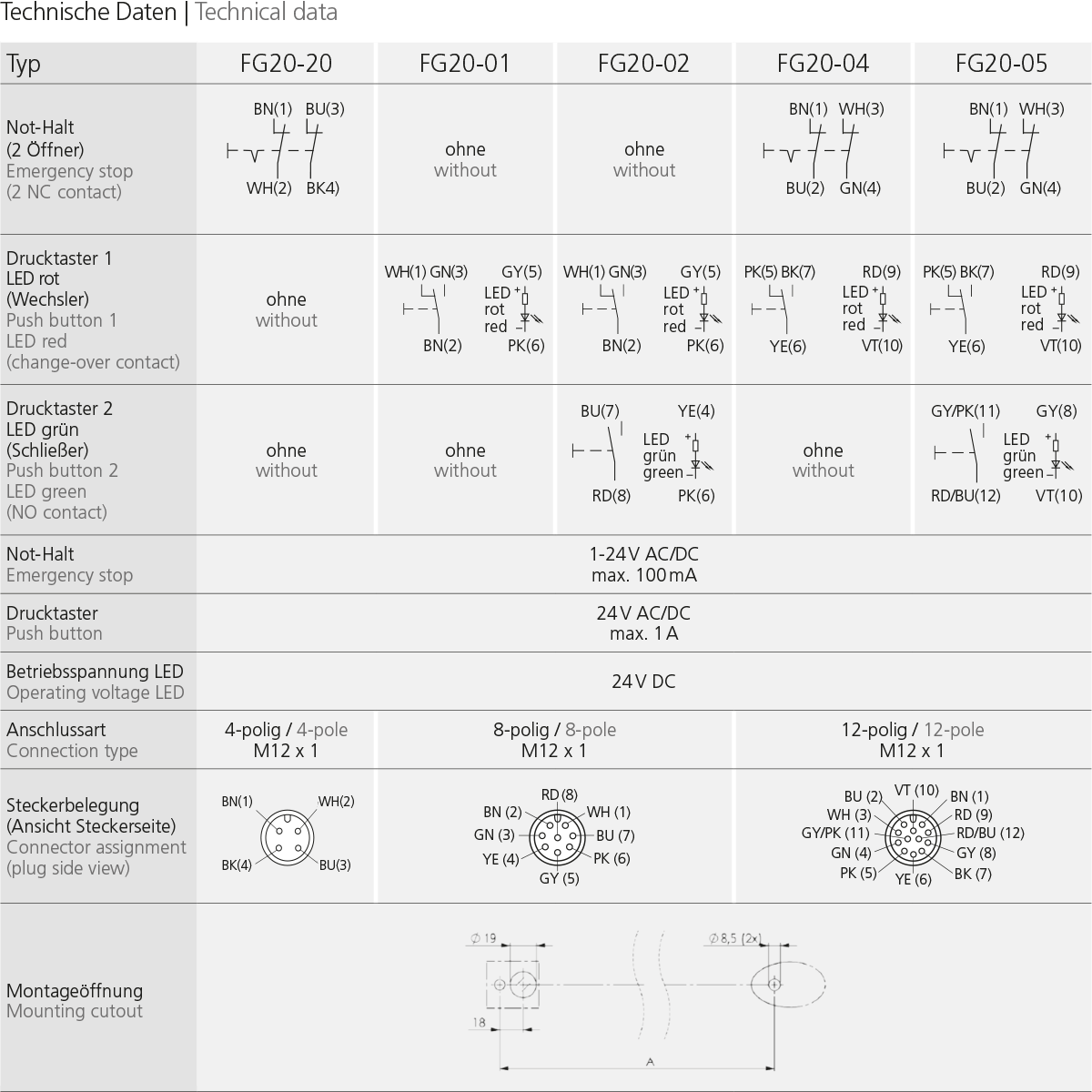

Technical data table for FG20 functional handles with connection types, LED details, emergency stop and push button configurations, and mounting cutout drawing.
