Indicator light SL2
Visual feedback on your equipment‘s and machine‘s condition.
Material and surface:
Housing made of aluminum AlMgSi 0.5.
Standard finish: Surface vibration ground and natural coloured anodized.
Satin finish: Glass ball blasted and anodized in natural colour, satin finished.

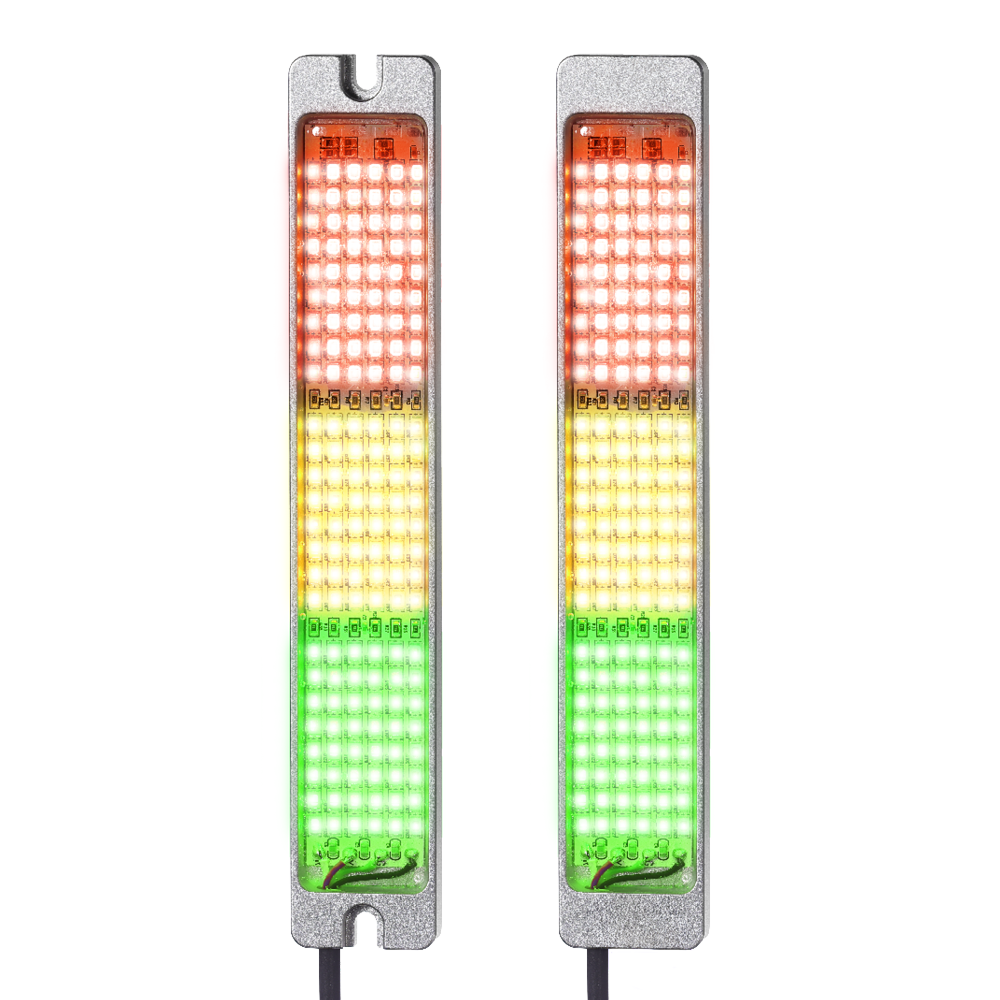

Illuminated Area:
The illuminated area is divided into single-color segments, each of which can be controlled individually.

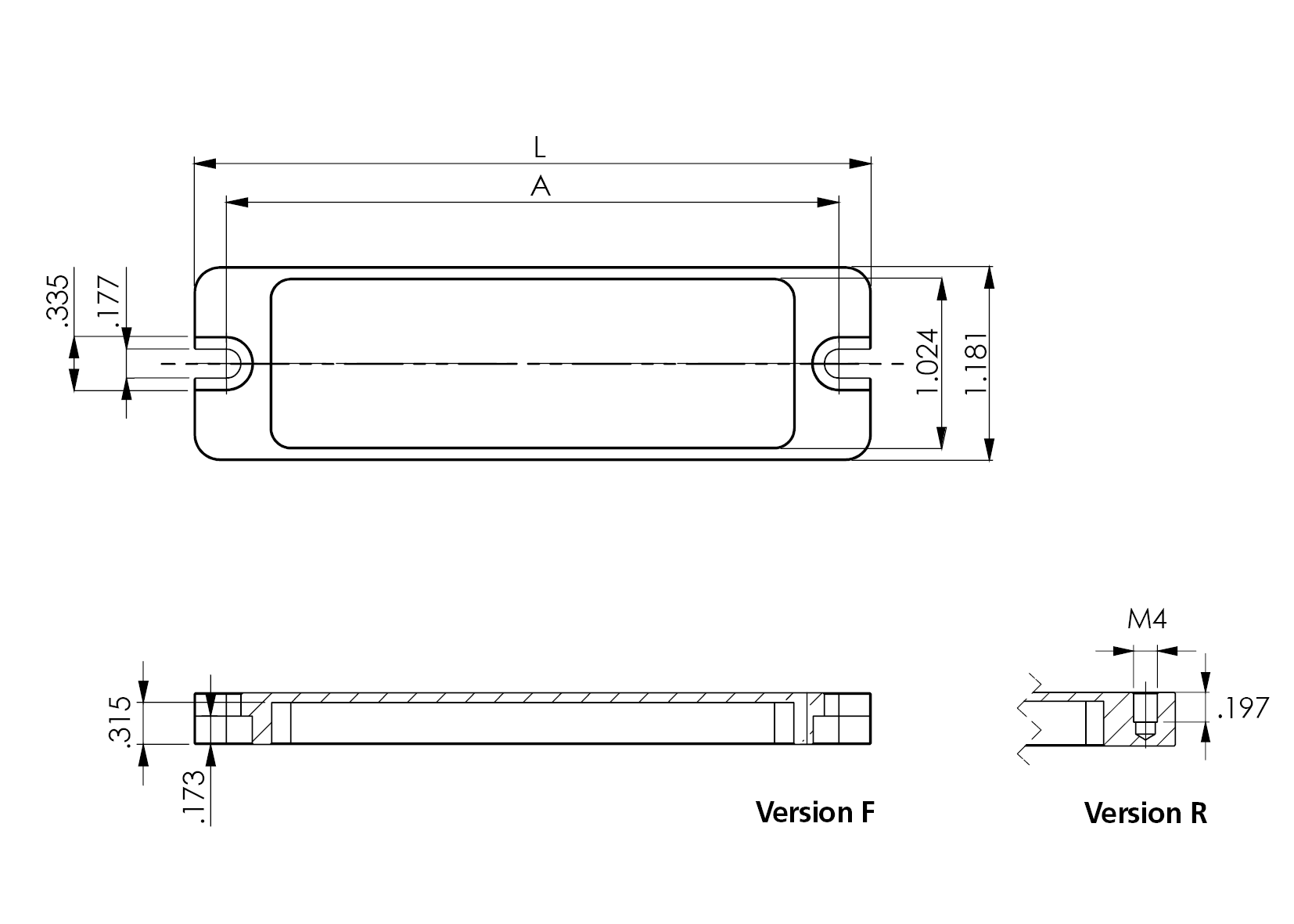

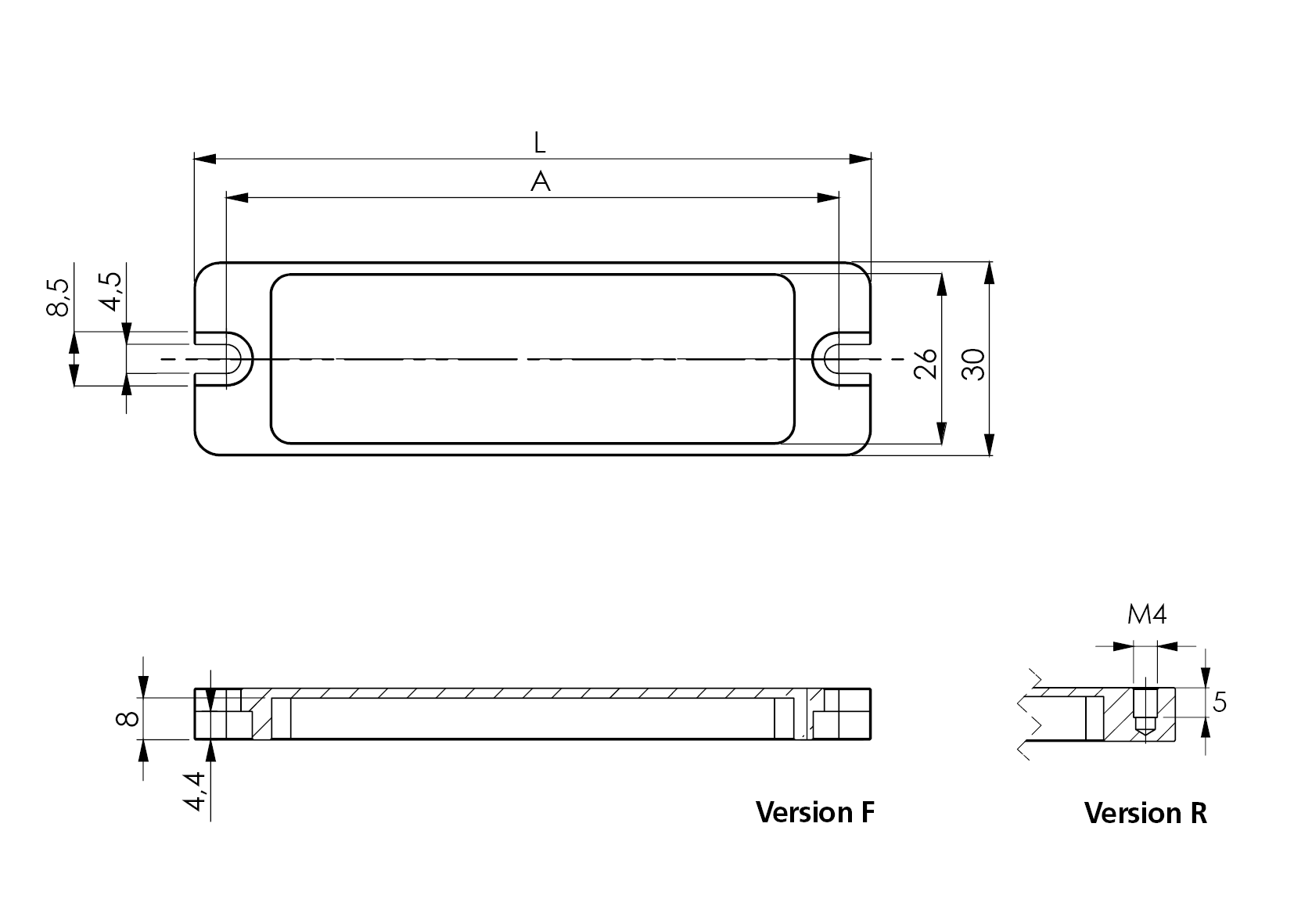

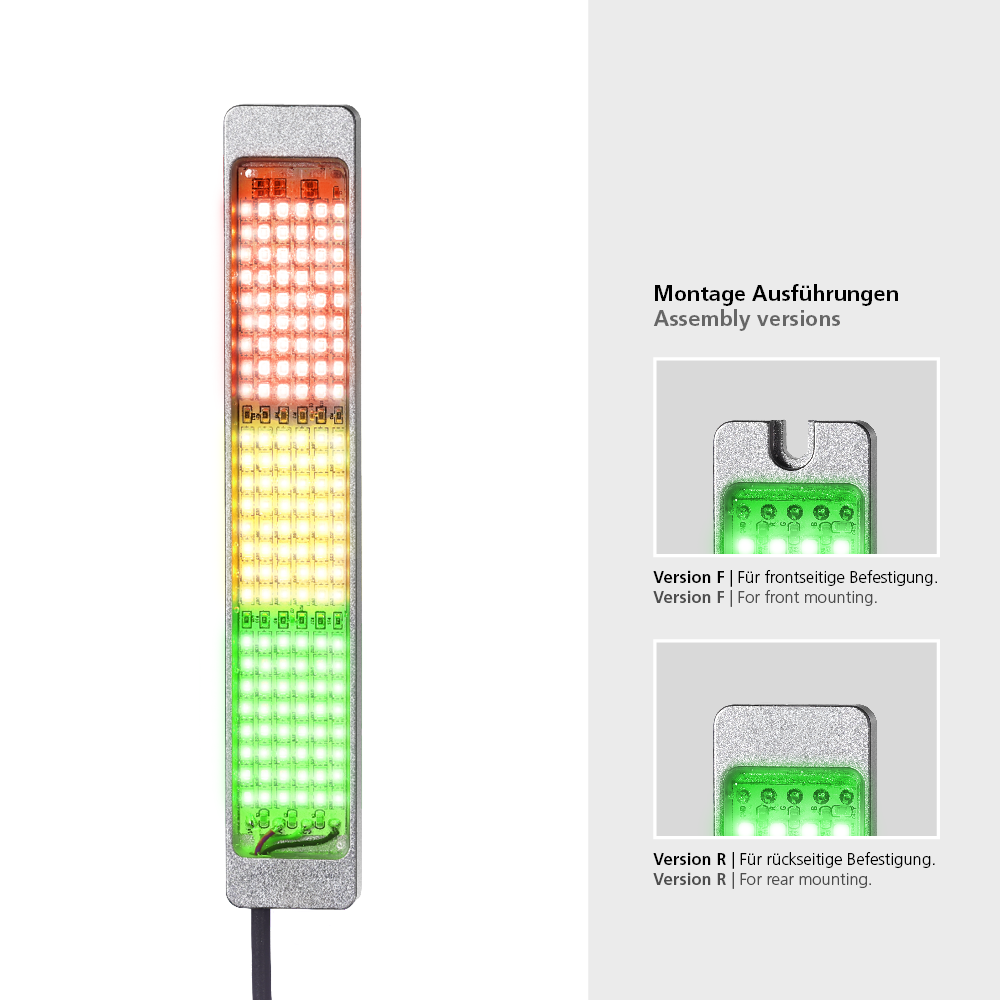

Assembly version:
Version F: For front mounting.
Version R: For rear mounting.
Connection:
5 m connection cable leading out of the housing, with free cable end.
Protection class:
IP 68.
Note:
Other cable lengths or colors.
|
Unit of measure
|
|||||
|---|---|---|---|---|---|
| Type | |||||
| Assembly version | L | A | Description |
Anodizing version natural-colored
Order-No. |
Anodizing version natural-colored with satin finish
Order-No. |
| Assembly version | L | A | Description |
Anodizing version natural-colored
Order-No. |
Anodizing version natural-colored with satin finish
Order-No. |
|---|---|---|---|---|---|
| Assembly version Version F | L 180 | A 170 | Description Light color: Red, yellow or green |
Anodizing version natural-colored
Order-No. SL2-00.F170.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. SL2-00.F170.11 3D+CAD |
| Assembly version Version R | L 180 | A 170 | Description Light color: Red, yellow or green |
Anodizing version natural-colored
Order-No. SL2-00.R170.01 3D+CAD |
Anodizing version natural-colored with satin finish
Order-No. SL2-00.R170.11 3D+CAD |
