Tube Connector flush for ø40 mm

Tube Connectors RV

Material:
Chill casting of high-grade aluminium alloy in accordance with DIN 1725.

Supply range:
The tube connectors are supplied with bolts and sockets nuts of stainless steel (material no. 1.4301).

Special versions:
Other diameters on request.

Colour/surface Surface-code
Rough state * -0.0

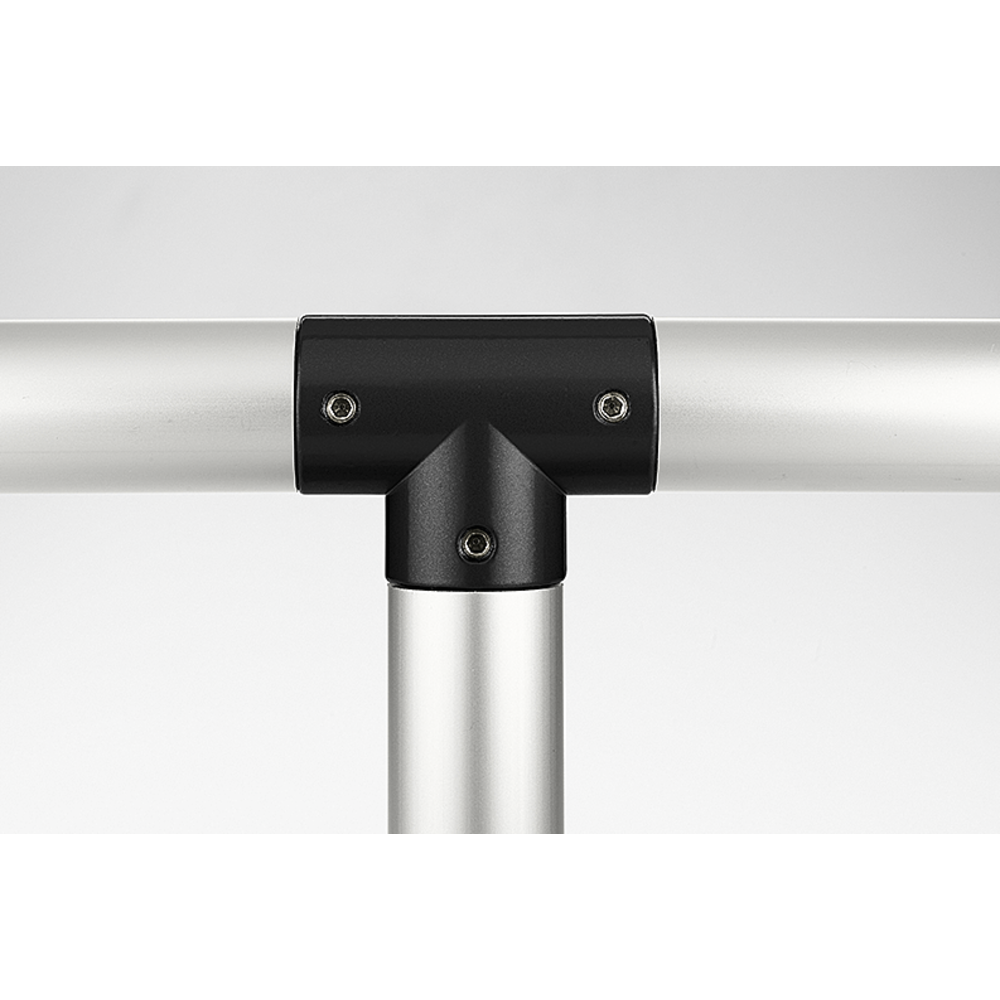

Black * -3-RAL 9005
Silver * -3-RAL 9006
Coloured * -3-RAL...



Variants

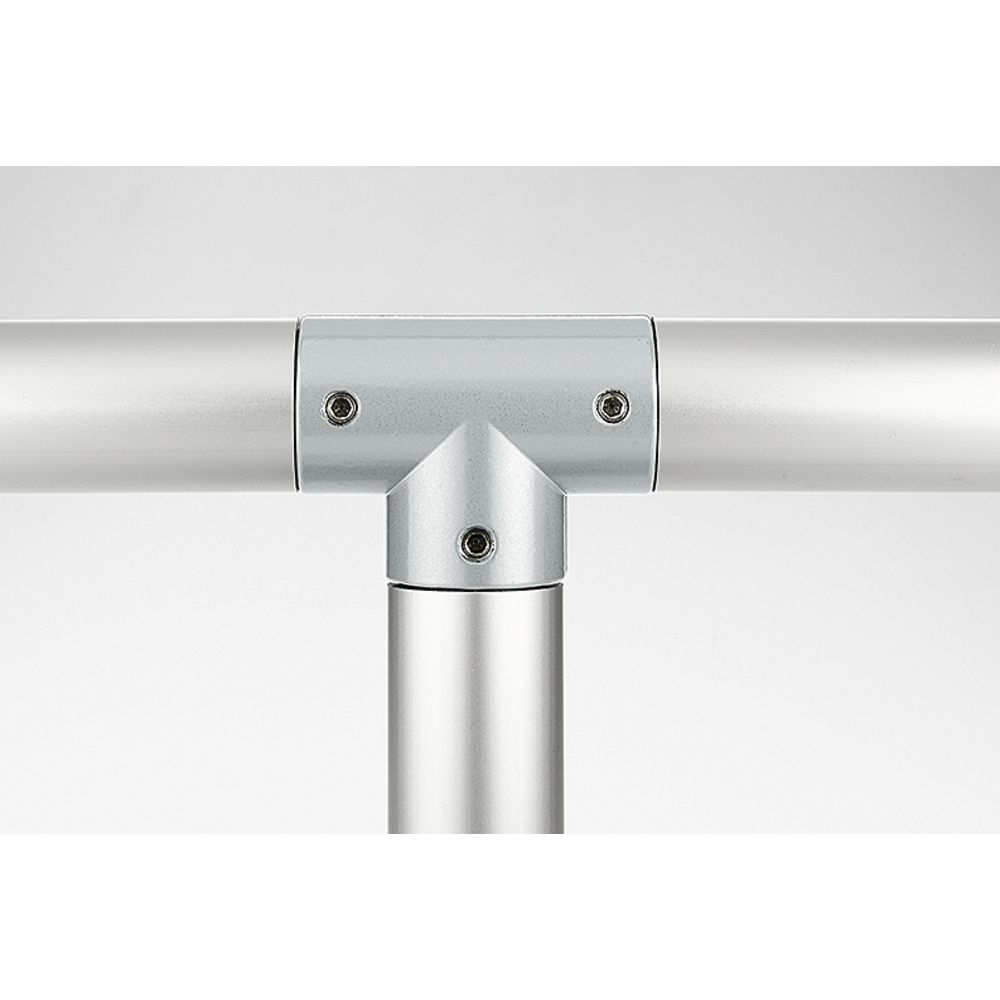

Angle-T-connector 90°

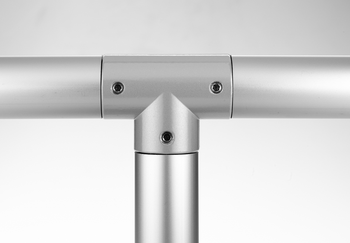

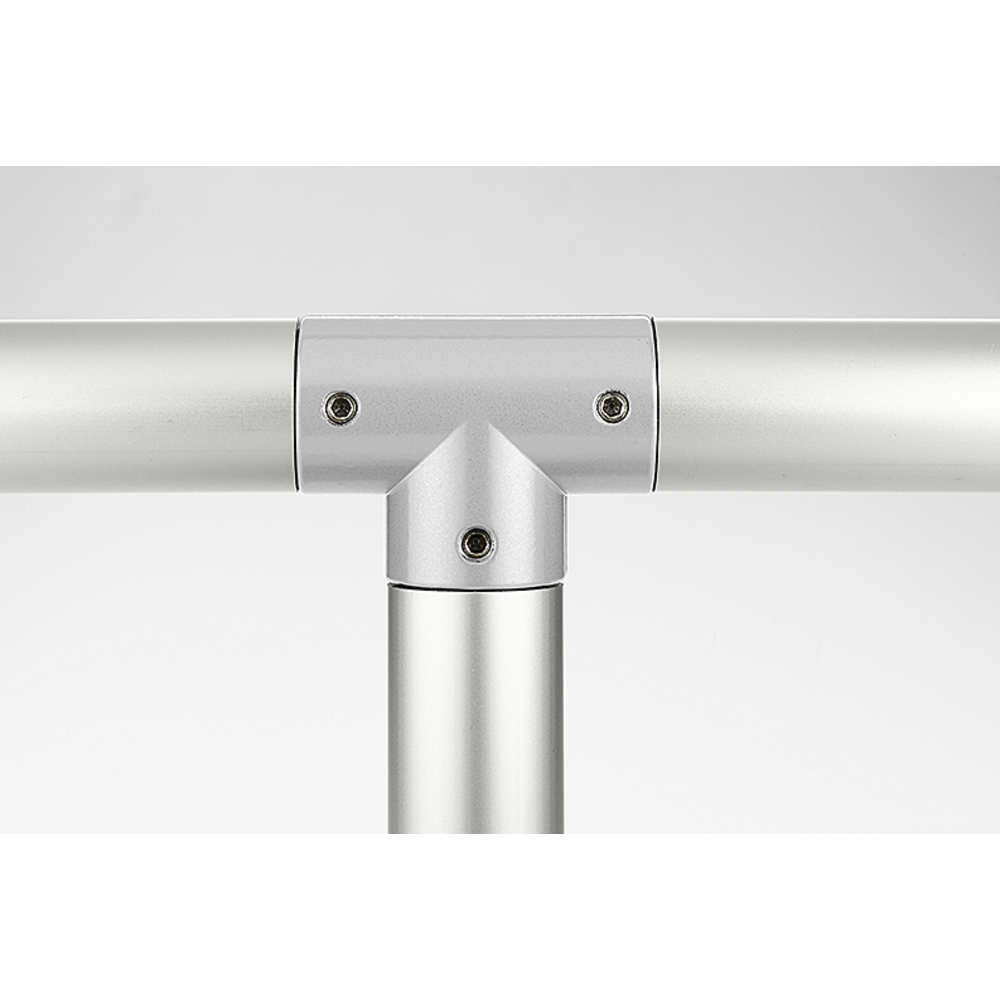

Metallic 90-degree angle T-connector with three hex socket screws connecting three cylindrical tubes forming a T-joint

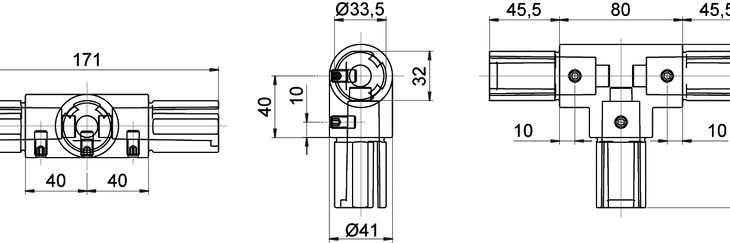

Technical drawing of a 90-degree angled T-shaped tube connector with dimensions and measurements.
Bestell-Nr.: RV-BR01 Request

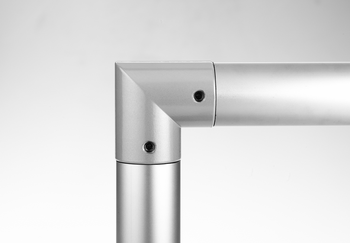

Angle-connector 90°

Bestell-Nr.: RV-BR02 Request

Cross-connector 90°

Bestell-Nr.: RV-BR03 Request

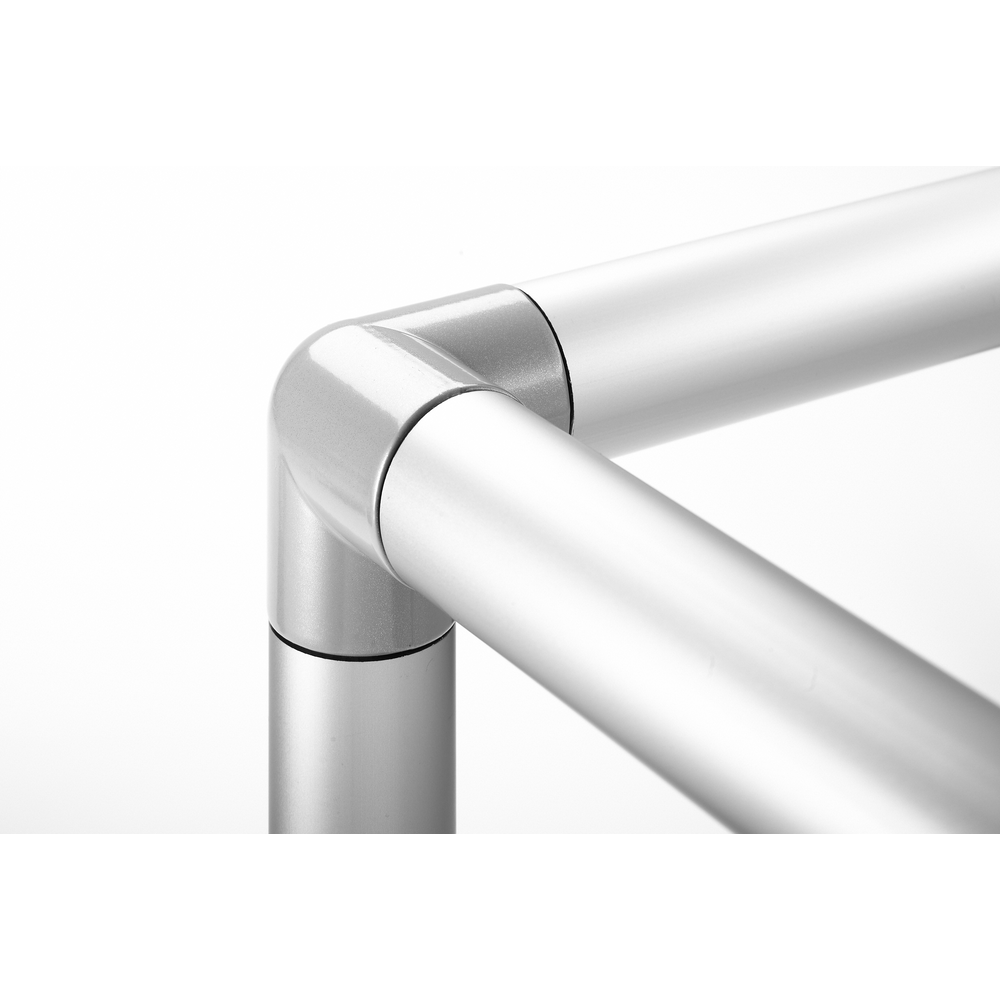

Angle-corner-connector

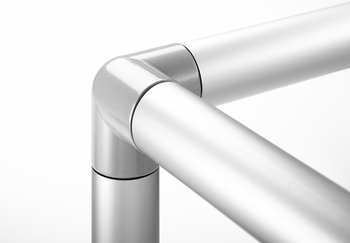

Silver metal tube connector forming a right angle, connecting two horizontal tubes with a vertical tube

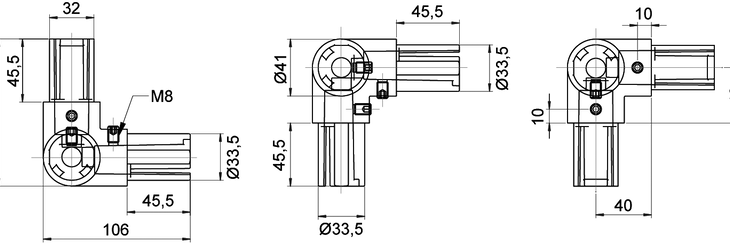

Technical drawing showing front, side, and top views of a right-angle tube connector with dimensions and M8 screw detail.
Bestell-Nr.: RV-BR04 Request

Angle-corner-T-connector

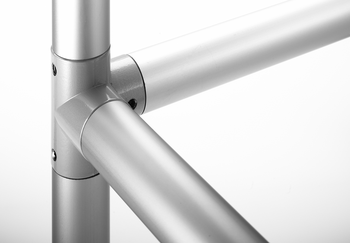

Silver metallic right-angle T-joint tube connector connecting three cylindrical tubes

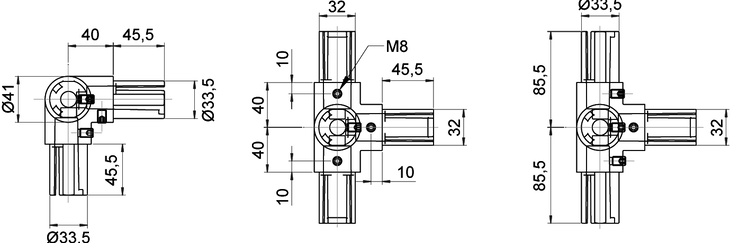

Technical schematic of Winkel-Eck-T-Verbinder tube connector showing front, top, and side views with detailed dimensions and mounting screw locations.
Bestell-Nr.: RV-BR05 Request

Angle-connector 30°/150°

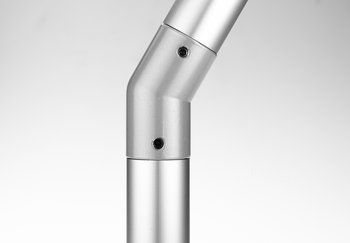

Metallic tube connector joining two cylindrical tubes at a 30°/150° angle with two mounting screws visible
Bestell-Nr.: RV-BR06 Request

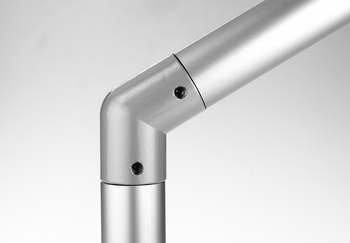

Angle-connector 60°/120°

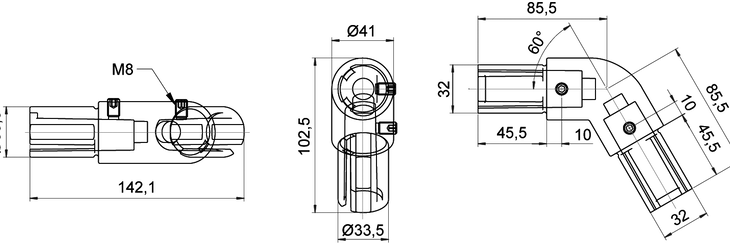

Technical line drawing of a Winkel-Verbinder tube connector with 60 degree and 120 degree angles, showing front, top, and side views with precise measurements in millimeters.
Bestell-Nr.: RV-BR07 Request

Angle-joint-connector, 1-shell

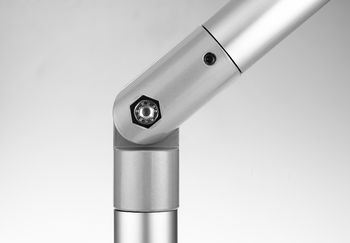

Close-up of a single-shelled angled joint connector made of two connected metallic tubes with a hexagonal bolt and securing screw.
Bestell-Nr.: RV-BR08 Request

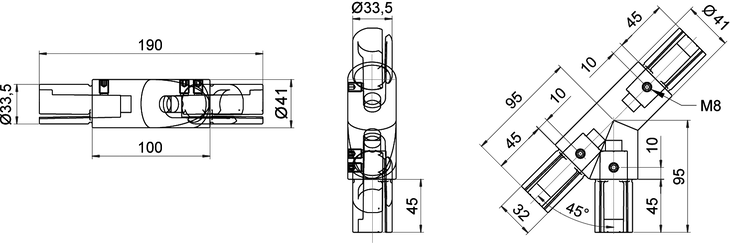

Angle-T-connector 45°/135°

Bestell-Nr.: RV-BR09 Request

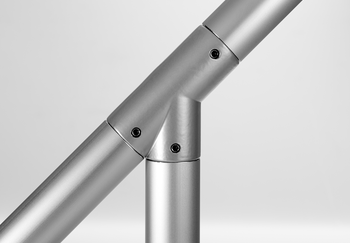

Angle-T-connector horizontal 45°

Close-up of a silver metal tube connector joining three cylindrical tubes at a 45-degree angled T-joint with visible screws on a light gray background.
Bestell-Nr.: RV-BR10 Request

Cross-connector 45°/135°

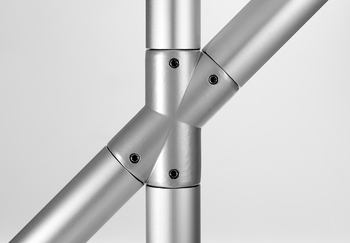

Close-up of a silver metallic cross-connector joining four tubes at 45° and 135° angles with black screws securing the components
Bestell-Nr.: RV-BR11 Request

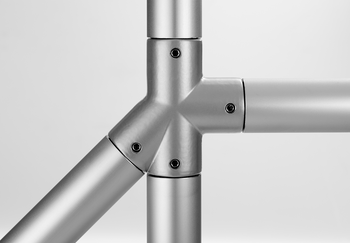

Cross-connector horizontal 45°

Bestell-Nr.: RV-BR12 Request
