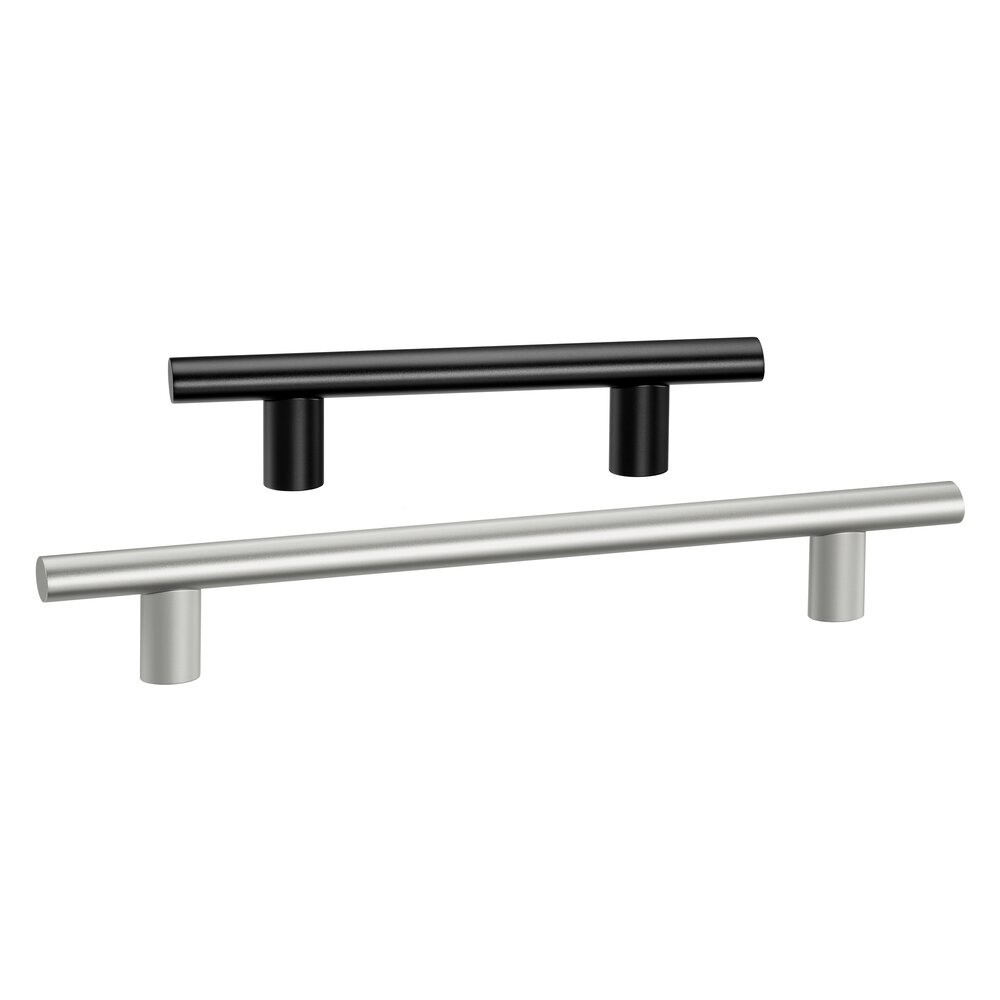

Handles U9
Solid handle in modern industrial design.
Material and surface:
Handle shanks and handle ledge of extruded aluminium AlMgSi 0,5. Shanks and handle ledge glass ball blasted, anodized in satin finish in natural colour or black.
Note:
Other handle lenghts and colour versions available on request.
Stress resistance:
min. 1000 N.
|
Unit of measure
|
|||
|---|---|---|---|
| Type | |||
| A | L |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
| A | L |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
|---|---|---|---|
| A 200 | L 340 |
Anodizing version natural-colored with satin finish
Order-No. U9-35.200.N11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. U9-35.200.S14 3D+CAD |
| A 400 | L 550 |
Anodizing version natural-colored with satin finish
Order-No. U9-35.400.N11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. U9-35.400.S14 3D+CAD |
| A 600 | L 760 |
Anodizing version natural-colored with satin finish
Order-No. U9-35.600.N11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. U9-35.600.S14 3D+CAD |
