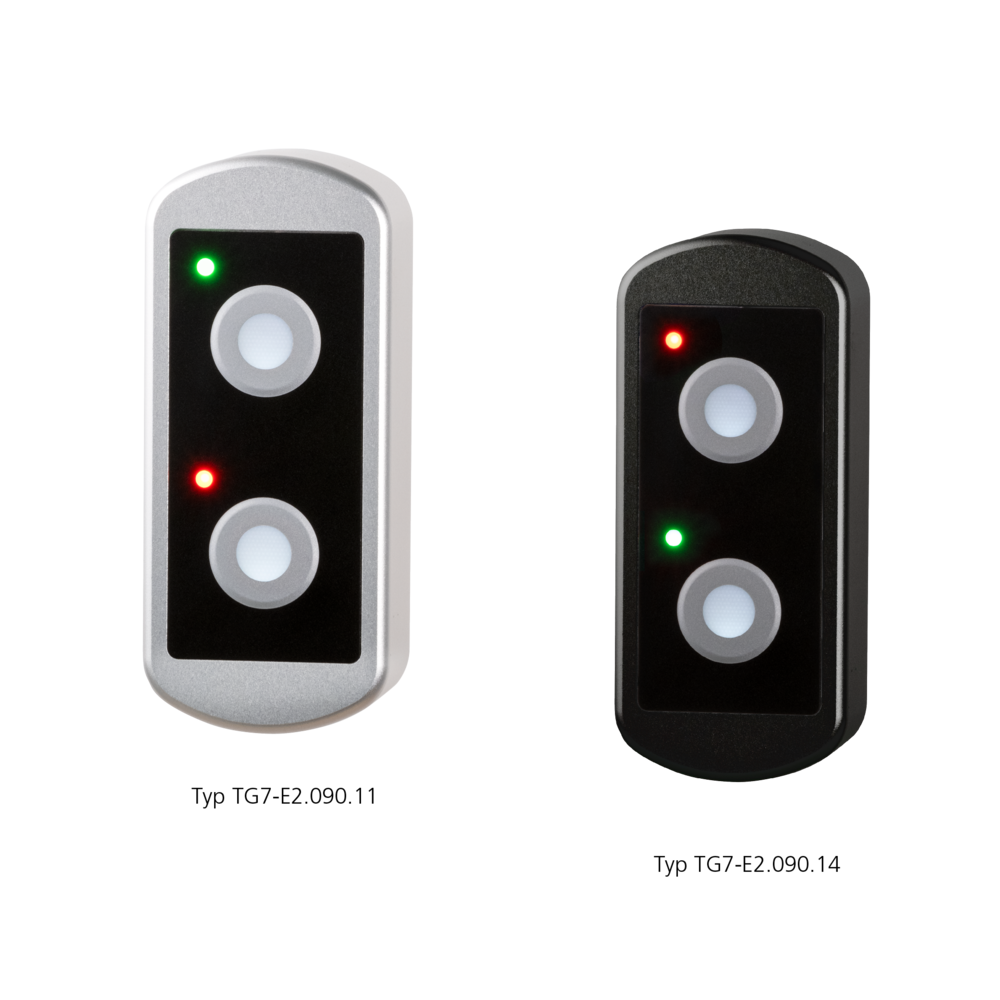

Switch Housing TG7
Material and surface:
Housing made of aluminium AlMgSi 0.5; blasted and natural colour or black anodised.
Functional elements:
Membrane keypad with 2 illuminated push-buttons (NO contact) and status display red or green.
Connection:
Connection cable 12-pole 5m led out of the push-button housing.
Protection:
IP 54.
Note:
Colour design of the keypad possible according to customer requirements.

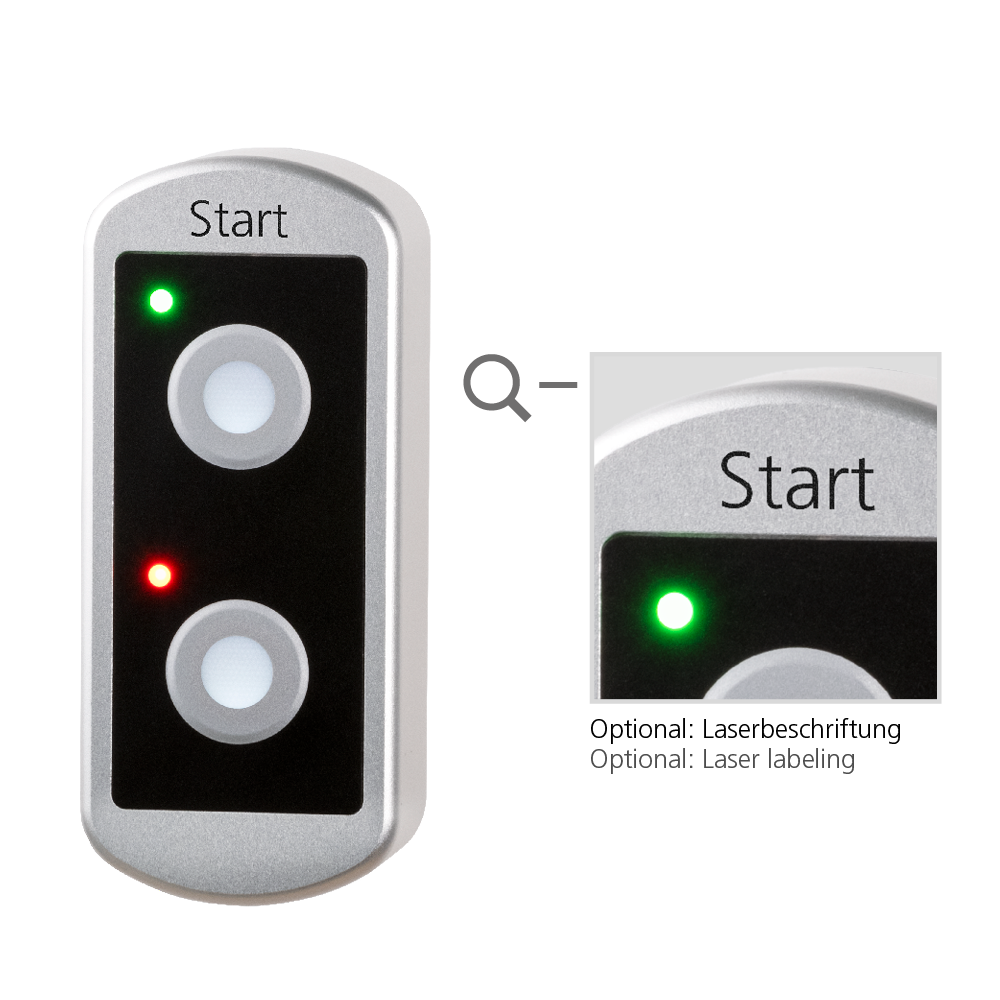

Laser labeling optional.
- labeling possible

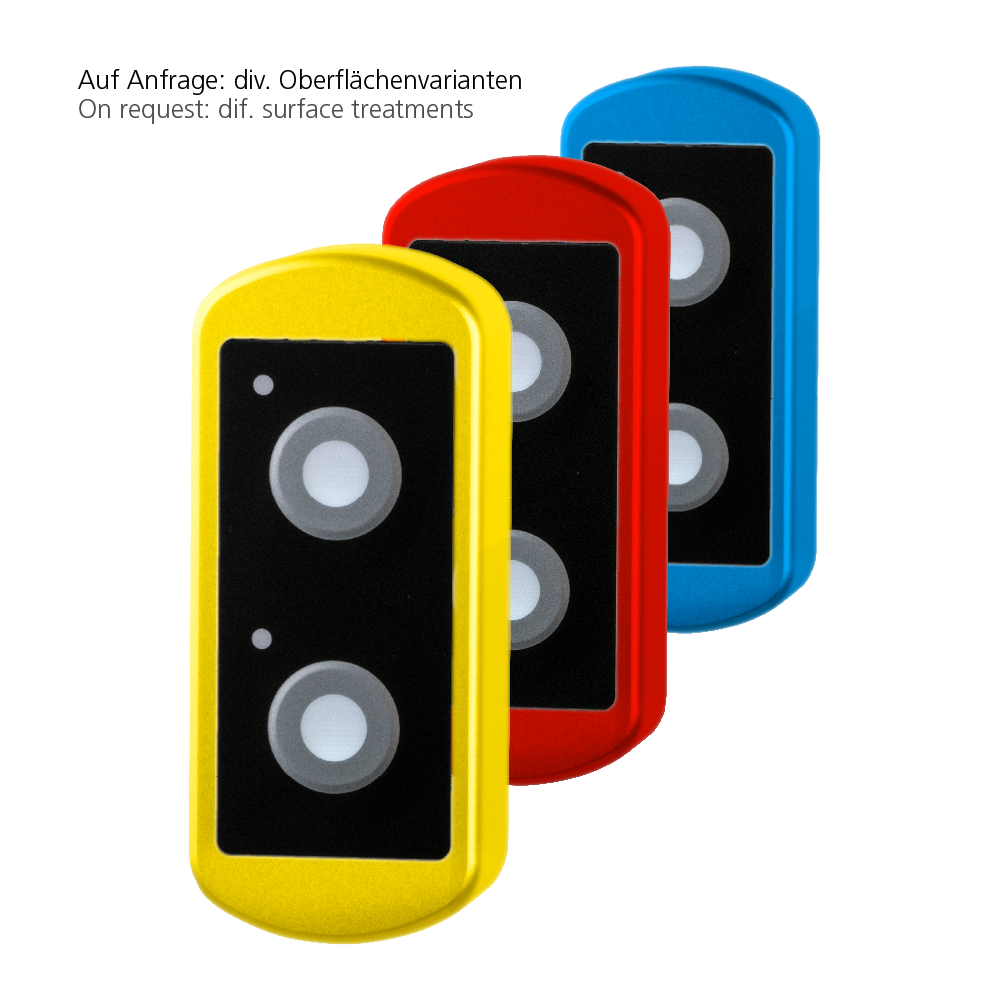

- further color versions
|
Unit of measure
|
||
|---|---|---|
| Type | ||
| Description |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
| Description |
Anodizing version natural-colored with satin finish
Order-No. |
Anodized aluminum black with satin finish
Order-No. |
|---|---|---|
| Description 2 push buttons |
Anodizing version natural-colored with satin finish
Order-No. TG7-E2.090.11 3D+CAD |
Anodized aluminum black with satin finish
Order-No. TG7-E2.090.14 3D+CAD |
